HQ600-S-7P CNC busbar punching machineLT HQ600-S-7P CNC busbar punching machine, with 7 punching mold + 1 shearing mold + 1 embossing mold in the same row to ensure the concentricity of the punching and shearing work. While ensuring the punching and shearing efficiency (40m/min), the precision control can reach 0.1mm/500mm.
Conclusion: HQ600-S-7P is a CNC busbar punching machine (maximum working envelope 15 × 200 mm; rated force 600 kN; published accuracy 0.10/500mm). The machine processes copper and aluminium busbars for switchgear, transformers and power distribution systems. It suits switchgear workshops, electrical equipment plants and busbar assembly lines that need repeatable output.
Condition: processing copper and aluminium busbars on the HQ600-S-7P. Value: Maximum thickness 15, maximum width 200. Baseline: against the smaller size class in the same series, which sets the material limit the HQ600-S-7P can handle.
Condition: punching or bending at full stroke on the HQ600-S-7P. Value: Rated force 600 kN. Baseline: the rated force is the reference and the die set and stroke are sized to hold it across the cycle.
Condition: accuracy measured over a 500 mm travel on the HQ600-S-7P. Value: 0.10/500mm. Baseline: positioning accuracy is the reference; working error includes workpiece clamping tolerance and die clearance.
Condition: punching busbar holes to switchgear drawings on the HQ600-S-7P. Value: Punching diameter Ø4.3-Ø55mm, die stations 1. Baseline: compared with single-die punching, a multi-station cluster completes several hole sizes in one clamping.
Condition: installing the HQ600-S-7P in a production workshop. Value: Machine size 10500x2750x1800mm, weight 6700 kg. Baseline: against the larger model in the same series, this size drives floor space and shipping plan.
HQ600-S-7P CNC busbar punching shearing machine
LT HQ600-S-7P CNC busbar punching shearing machine is a high-performance CNC busbar processing machine that integrates punching and shearing. The HQ600-S-7P CNC busbar punching and shearing machine adopts a straight column mold frame with 7 punching,1 shearing and 1 embossing to ensure the concentricity of the upper and lower dies during long-term use during processing. It is also equipped with CNC control system and CAD/CAM system, which greatly improves the production efficiency of busbar punching and shearing. Get the latest busbar punching and shearing machine prices, contact us now.
LT Busbar Machine Videos:
Infomation:
HQ600-S-7P CNC Copper busbar punching machine Specifications
| Model | HQ600-S-7P |
| Maximum Force | 600KN |
| Feeding Station Size | 3000x500mm |
| Discharge Station Size | 2500x500mm |
| Maximum Plate Size | 6000x200x15mm |
| Maximum Processing Thickness | 15mm |
| Maximum Processing Width | 200mm |
| Maximum Punching Diameter | Ø4.3-Ø55mm |
| Maximum Number of Cutting Dies | 1 |
| Maximum Number of Punching Dies | 7 |
| Maximum Number of Embossing Mold | 1 |
| X-Axis Maximum Travel | 2000mm |
| X-Axis Accuracy Error | 0.10/500mm |
| Y-Axis Maximum Travel | 960mm |
| Y-Axis Accuracy Error | 0.10/500mm |
| Z-Axis Maximum Travel | 310mm |
| X-Axis Maximum Positioning Speed | 75m/min |
| Striking Cylinder Stroke | 45mm |
| Number of Control Axes | 6 |
| Dimensions (LxWxH) | 10500x2750x1800mm |
| Weight | 6700kg |
Feature:

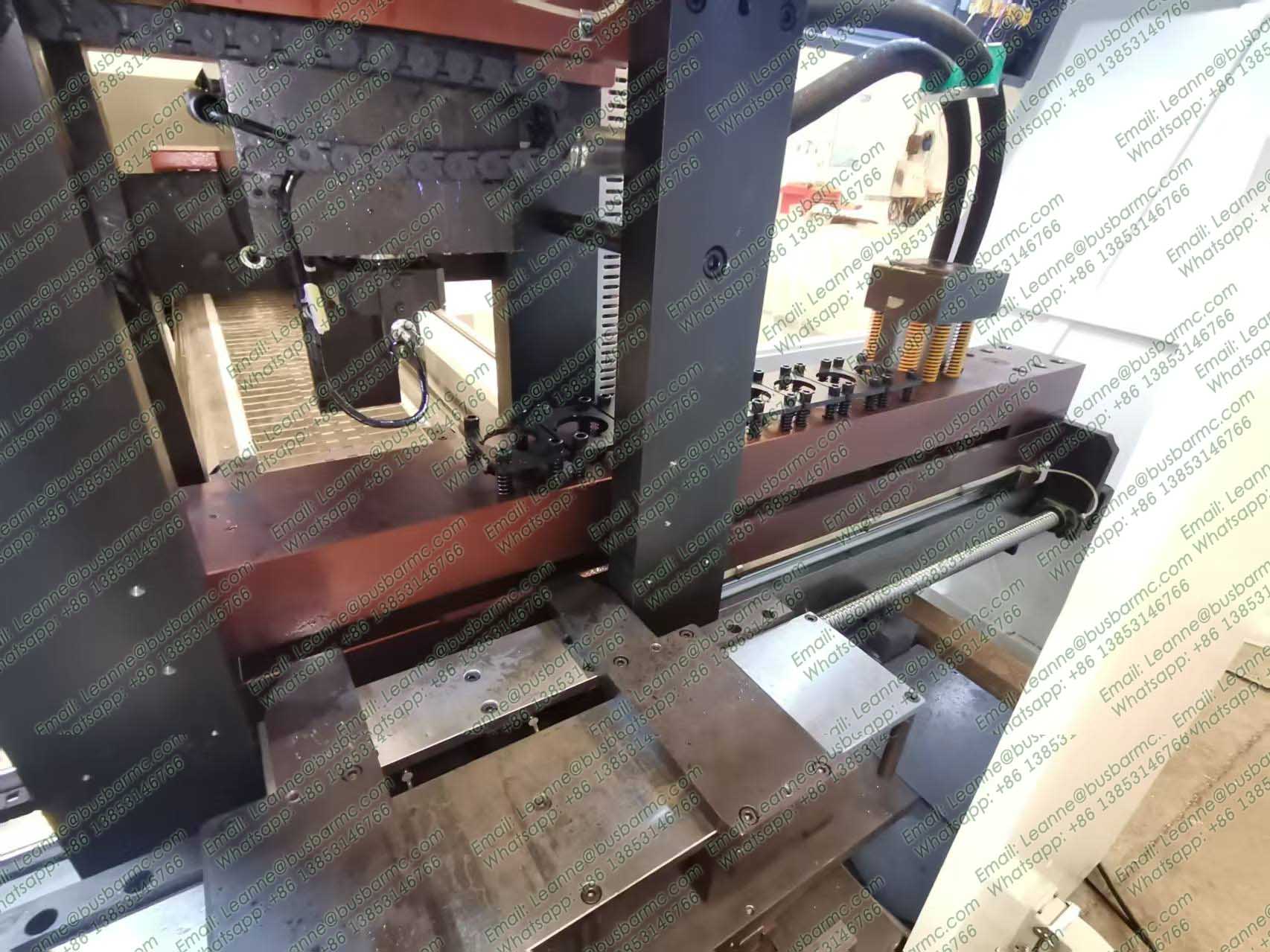

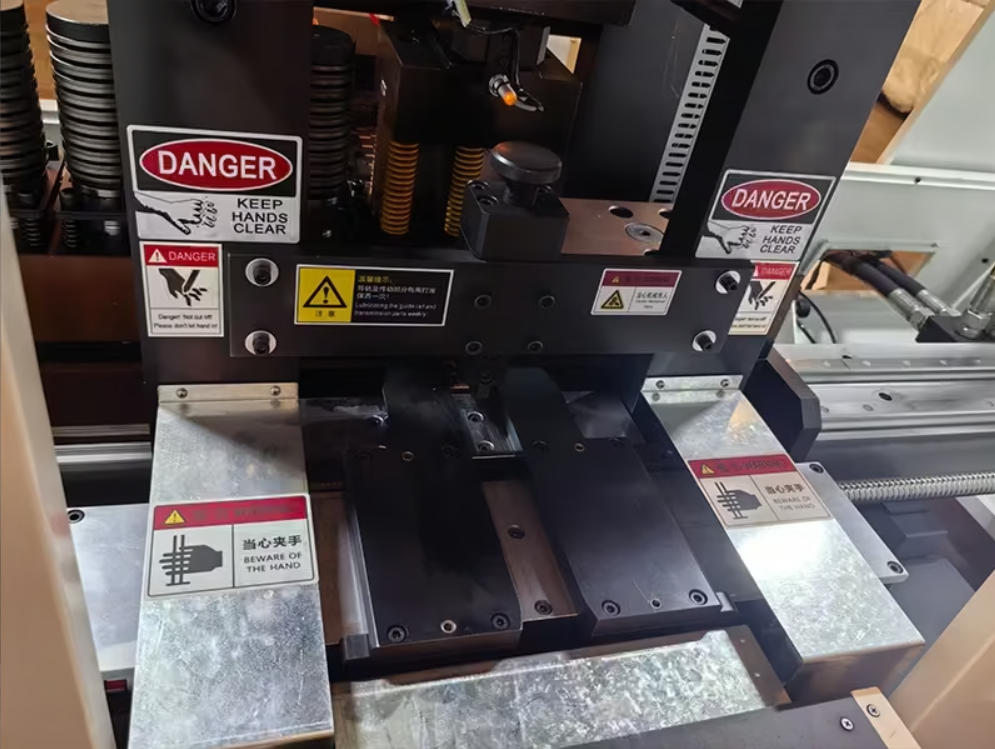

Straight column single row die library, consisting of 8 punching mold + 1 shearing mold + 1 embossing mold .
Single-row die library design, with 7 punching mold + 1 shearing mold + 1 embossing mold in the same row to ensure the concentricity of the punching and shearing work. While ensuring the punching and shearing efficiency (40m/min), the precision control can reach 0.1mm/500mm.
servo system is used to achieve 6-axis control, and the X-axis punching and shearing efficiency is Max 75m/min

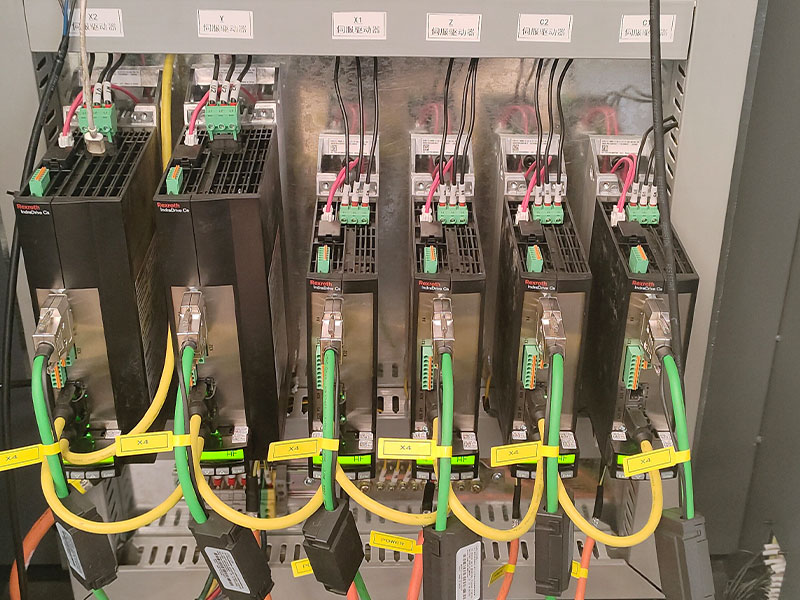

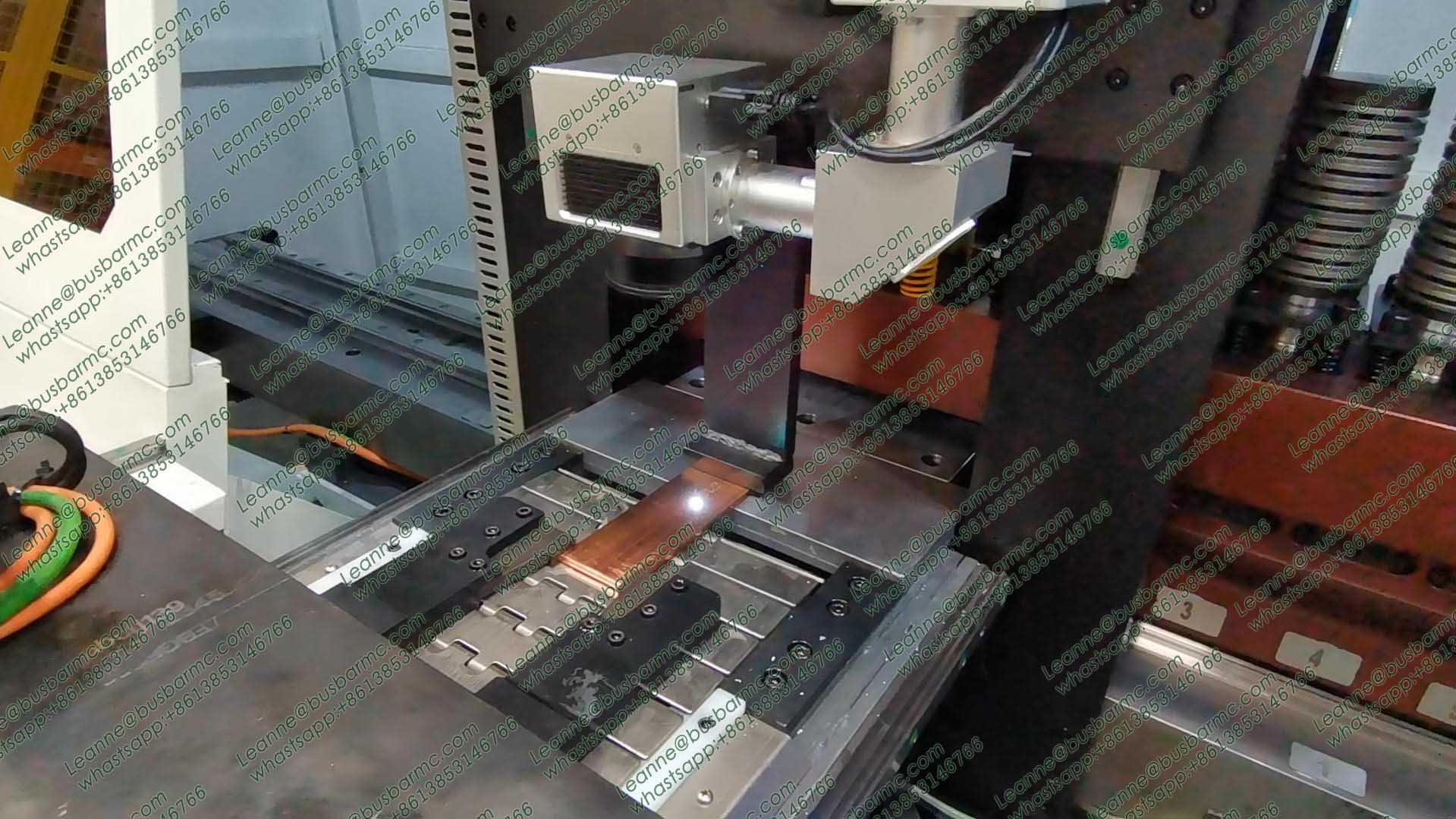

6-axis motion system adopts 6 servo servers and 6 servo motors to drive control, with high control accuracy. Among them, the effective stroke
of the X1 servo clamp is 110mm, and the effective stroke of the X2 servo clamp is 2000mm. The X-axis motion efficiency is improved by
shortening the feed stroke and lengthening the discharge stroke. Max 75m/min (150m/min under no-load condition) in the punching
and shearing working state.

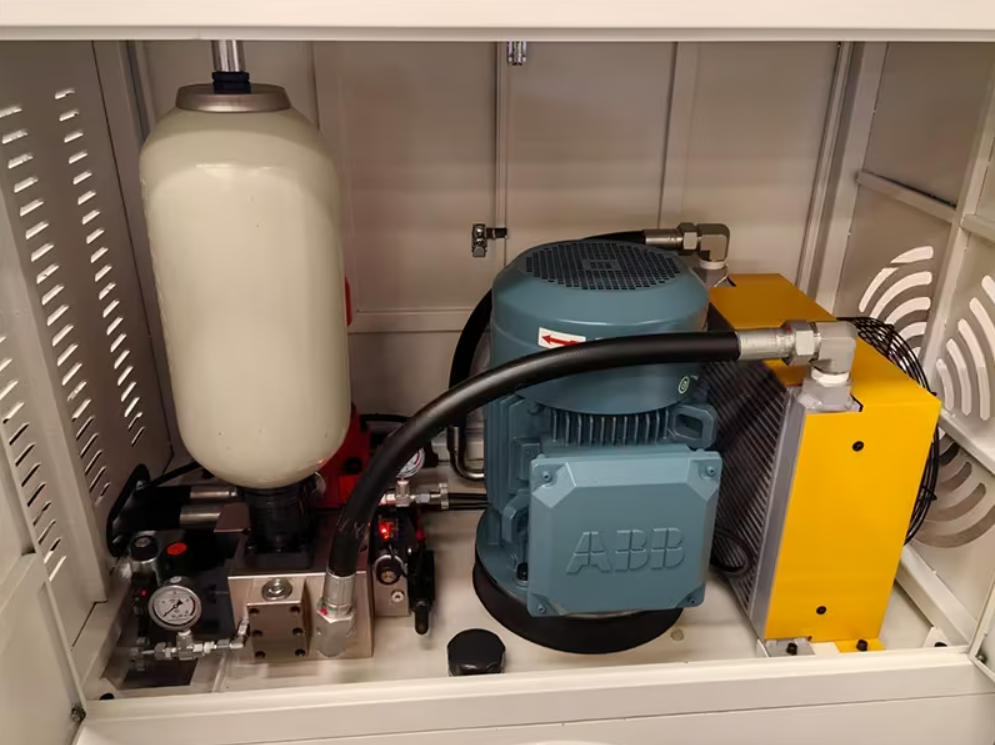

Equipped With A Swiss ABB Motor, It Supplies 600KN Hydraulic Pressure.The hydraulic station uses
Swiss ABB motor to provide 600KN hydraulic pressure, all of which is supplied to the punching and shearing unit,
effectively ensuring sufficient hydraulic pressure and punching and shearing work stability.

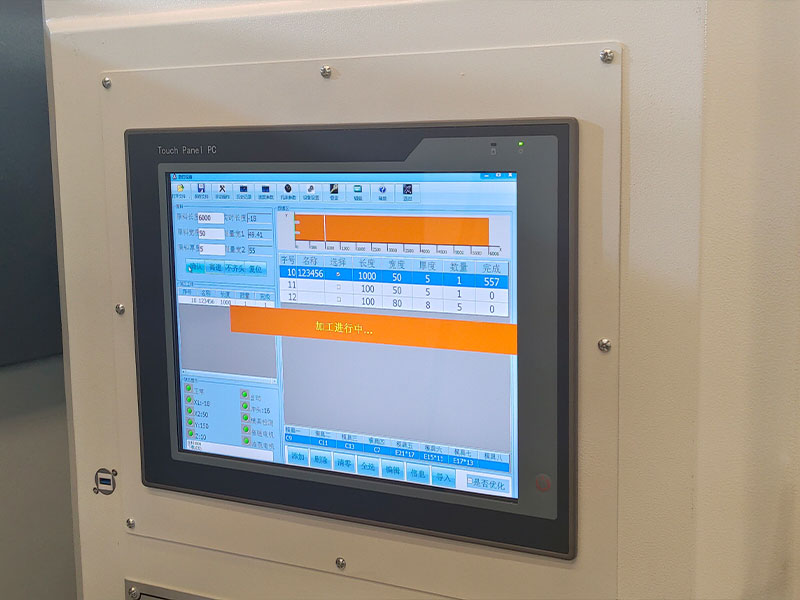

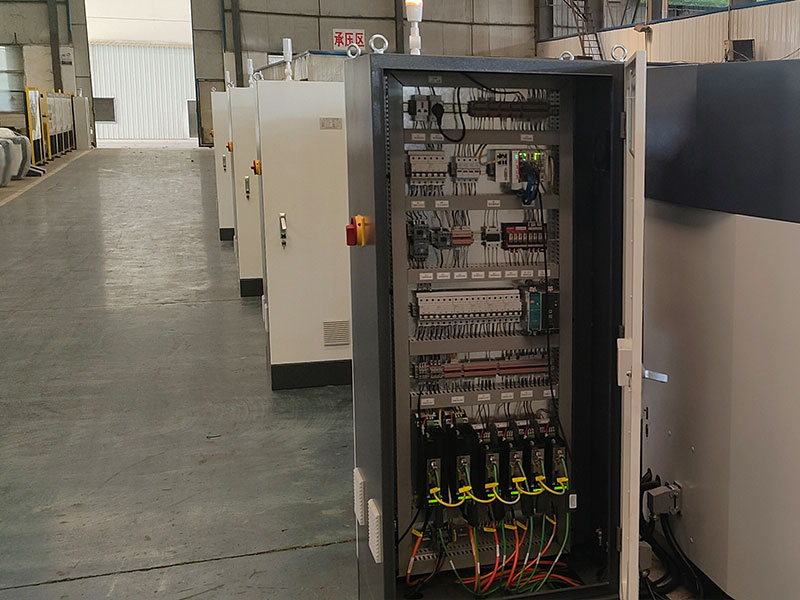

German Beckhoff System, German Rexroth Servo Motor And Servo Server.
German Beckhoff control system has closed-loop control, which has the advantages of high control accuracy,
strong anti-interference ability and flexible self-adaptation.
(Siemens control system has poor precision control, adopts open-loop control,
and is prone to data loss.) The equipment uses internationally renowned brand
accessories (German Rexroth), which are more stable than Chinese self-developed
brands and have lower maintenance costs.
HQ600-S-7P CNC Busbar Punching & Shearing Machine — FAQ
Q1: What materials can the HQ600-S-7P process?
A: The machine is designed to process copper and aluminum busbars, suitable for applications such as switchgear, distribution panels, control cabinets and busbar fabrication.
Q2: What are the machine's maximum processing dimensions?
A: Maximum plate size is 6000 × 200 × 15 mm. Maximum processing thickness is 15 mm and maximum processing width is 200 mm.
Q3: How many punching, shearing and embossing dies does it have?
A: The HQ600-S-7P uses a straight-column single-row die bank with 7 punching dies, 1 shearing die and 1 embossing die arranged in the same row.
Q4: What hydraulic and motor specifications does it use?
A: The hydraulic system supplies up to 600 kN of pressure and is driven by a Swiss ABB motor, as stated in the product details.
Q5: What control and servo systems are used?
A: The machine is equipped with a German Beckhoff control system and German Rexroth servo motors/servers for 6-axis control, providing closed-loop control and high positioning accuracy.
Q6: What accuracy and axis travel can I expect?
A: X- and Y-axis accuracy is listed as 0.10 mm per 500 mm. X-axis maximum travel is 2000 mm, Y-axis maximum travel is 960 mm, and Z-axis maximum travel is 310 mm.
Q7: What is the punching and shearing speed?
A: The X-axis maximum positioning speed is 75 m/min in operational conditions (150 m/min under no-load condition is noted in the specification). Punching/shearing working speed is described as up to 40 m/min in the feature text.
Q8: How many control axes and what are the machine dimensions?
A: The machine has 6 control axes. Overall machine dimensions are 10,500 × 2,750 × 1,800 mm and the stated weight is 6,700 kg.
Q9: Does the machine support CAD/CAM integration?
A: Yes — the product description indicates CNC control plus CAD/CAM system compatibility to improve programming and production efficiency.
Q10: How can I obtain pricing and demonstrations?
A: For the latest pricing, availability, lead time and machine videos/demonstrations, please contact the sales team or authorized distributor. The product text invites contacting sales for the latest busbar punching and shearing machine prices.
